Door Hardware
3D Flag Hinge FH 103
- Details
- Category: Door Hardware
FEATURES & BENEFITS
• Full 3-D adjustability with a standard Allen key
(Lateral Adjustment ±5mm, Height Adjustment
+5mm, Compression Adjustment +-2mm)
• Sash Max. Load: 100kg
• Covers sash rebates from 14mm to 23mm,
without the use of plastic packers
• Standard frame parts: 16mm and 21mm
• Plastic shoe packer and additional flat packers
available for a greater range of applications
• Supplied with high security fixings
• Specific Ovulo packers available to special order
• Packaged as 1 per box, 30 boxes per carton
Door Handle DH 312
- Details
- Category: Door Hardware
FEATURES & BENEFITS
• Lever/lever variant: non-handed
• 32mm backplate width
• Tested to PAS 23-1: 1999 Clause 6.11
• Die-cast Aluminium or Zinc Alloy
• 2 year surface finish guarantee thanks to durable PVD coating
• Supplied with 1x8mm spindle and screw pack included as standard for 70mm door thickness
• Colour co-ordinated screw heads
• Packed as 1 pair per box, 20 boxes per carton
3D Flag Hinge KFH 110
- Details
- Category: Door Hardware
FEATURES & BENEFITS
• Suitable for both UPVC and timber doors
• Manufactured from quality die-cast zinc
alloy for strength & durability to
withstand the elements
• Fully adjustable in 3 directions
• Product finished in white, brown, gold,
polished chrome and high impact
PVD finishes
• Available in 14mm and 17mm base
heights to suit all major door profiles
• Fully adjustabel +/-5mm lateral and
horizontal +/- 2mm compression
• Non handed for ease of fabrication
• Fixing screws included in every box
• Available in 90mm or 110 mm options
Door Handle DH 313
- Details
- Category: Door Hardware
FEATURES & BENEFITS
• Lever/Pad variant: non-handed
• Dual spindle locks suitable for 92/62 PZ centres
• Designed for front door application
• 32mm width, blank backplate option available
• Die-cast Aluminium or Zinc Alloy
• 2 year surface finish guarantee thanks to durable PVD coating
• Colour co-ordinated screw heads
• Packaged 1 pair per box, 20 boxes per carton

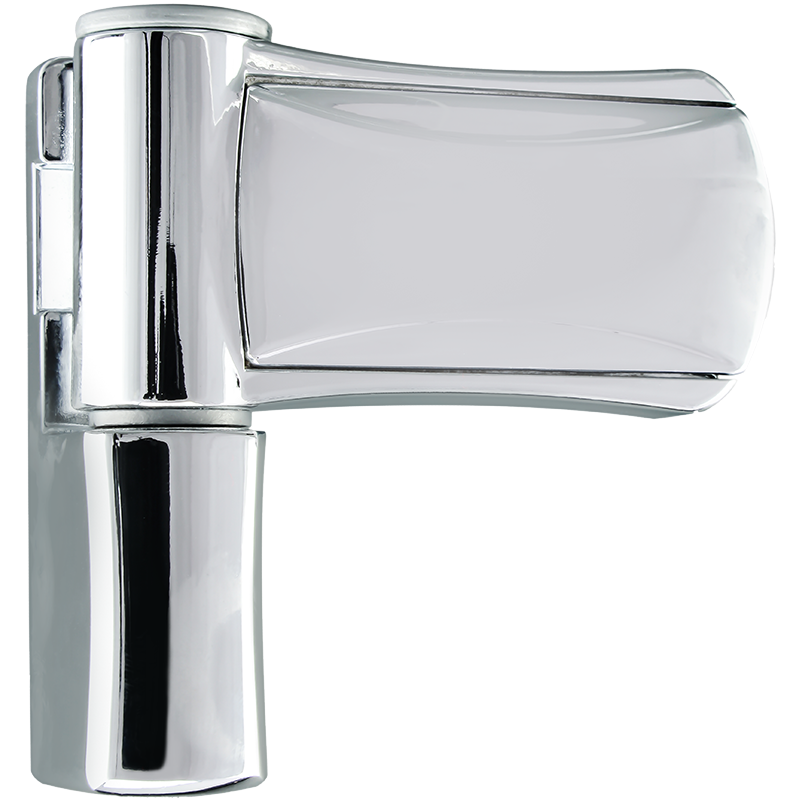

3D Flag Hinge KFH 90
- Details
- Category: Door Hardware
FEATURES & BENEFITS
• Suitable for both UPVC and timber doors
• Manufactured from quality die-cast zinc alloy for strength
& durability to withstand the elements
• Fully adjustable in 3 directions
• Product finished in white, brown, gold, polished chrome
and high impact PVD finishes
• Available in 14mm and 17mm base heights to suit all
major door profiles
• Fully adjustabel +/-5mm lateral and horizontal
+/- 2mm compression
• Non handed for ease of fabrication
• Fixing screws included in every box
• Available in 90mm or 110 mm options
Locking Vertical Bracket Cable Restrictor
- Details
- Category: Door Hardware
FEATURES & BENEFITS
- Designed and manufactured in the UK, the Vertical Bracket Cable
Restrictor is fully compliant to BS EN 14351-1: 2006, Clause 4.8. - Providing simple child safety and anti-theft prevention.
- A sleek colour coded solution for safety and security, for the home or the office.
- Cable colours Black or White, White cables as standard with White restrictors,
Black with all other finishes. - Standard cable length 200mm.
- Two keys supplied with each unit.
- Standard finishes: White Powder Coat,Brushed Stainless Steel, Polished Gold,Polished Chrome
- Product Patent Protected.
Locking Vertical Bracket Cable Restrictor |
Providing simple child safety and anti-theft prevention, available in different colours. |
Door Handle DH 311
- Details
- Category: Door Hardware
FEATURES & BENEFITS
• Lever/lever variant: non-handed
• Suitable for 92 PZ centres
• 30mm backplate width
• Spring cassette option
• Supplied with 1x8mm spindle and screw pack
included as standard for 70mm door thickness
• Die-cast Aluminium or Zinc Alloy
• 2 year surface finish guarantee thanks to durable
PVD coating
• Colour co-ordinated screw heads
• Packed as 1 pair per box, 20 boxes per carton
