HB117SG window handle. small
FEATURES & BENEFITS


• Tested in accordance to BBA
• Six suited finishes
• High profile to give greater knuckle clearance during operation
• Non-handed for ease of stocking
• Push-to-open locking mechanism
• Green button available for fire egress applications
• Colour co-ordinated screw covers
• Profile-specific spindle lengths
• Packaged as 10 per box, 6 boxes per carton







OFFSET WINDOW HANDLE HB 117

The inline window handle is engineered to work  with all standard espagnolette and shoot bolt mechanisms with 43mm centres. Suitable for PVC-u, Aluminium and Timber window profiles, this range offers outstanding performance and reliability. Aimed at the prestigious end of the market, the Claymore inline window handle is produced to meet the demands associated with the new build and commercial sectors, while still retaining the aesthetical and contemporary design that appeals to the domestic and trade fabricator.


CLAYMORE

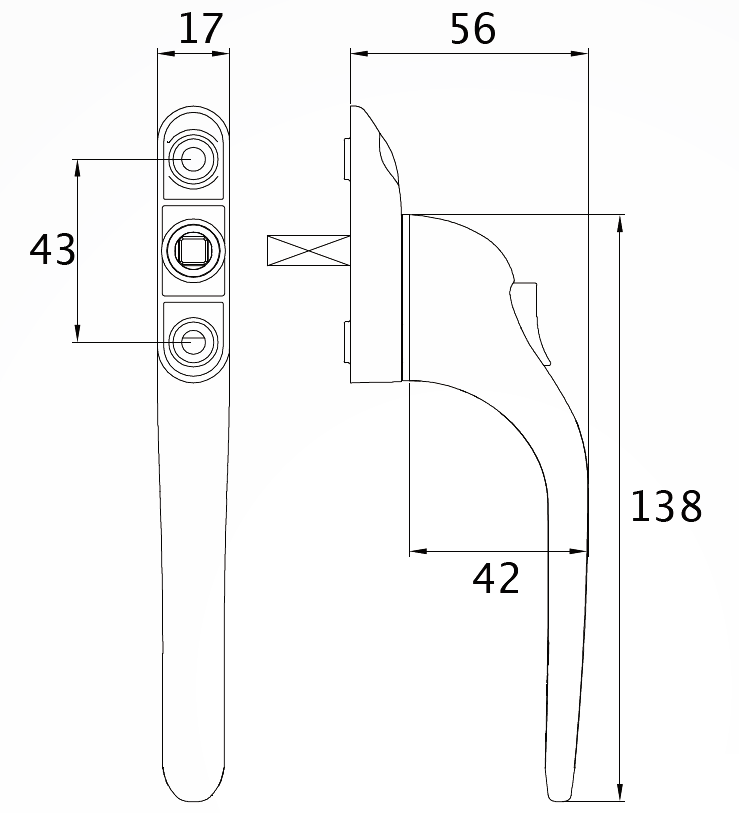

 HB117 window handle technical drawing

Available Colors
white small White
 black small Black
 polished gold small Polished Gold
Polished chrome small Polished Chrome
 smoked chrome. small Smoked Chrome
 satin silver small Satin Silver



Color Coating Type  BS EN 1670 : 2007
 White  Powder Coat  Grade 5 (480 hours)
 Black  Powder Coat  Grade 5 (480 hours)
 Polished Gold  Electrophoretic Lacquer  Grade 4 (240 hours)
 Polished Chrome  Electro-Plating  Grade 4 (240 hours)
 Smoked Chrome  Electro-Plating  Grade 4 (240 hours)
 Satin Silver  Electro-Plating  Grade 4 (240 hours)
Product Code Product Type Available Spindles
 HB 117PK Locking 15,20,25,30,35,43
