FEATURES & BENEFITS
•Tested in accordance to BBA
• Available in Top Hung and Side Hung
variants for 13 and 17mm stack height
applications
• Manufactured from SUS 430 ferretic stainless steel
• Fire egress option available
• Suitable for all major profiles
• Quick and easy to fabricate
• Smooth glide operation

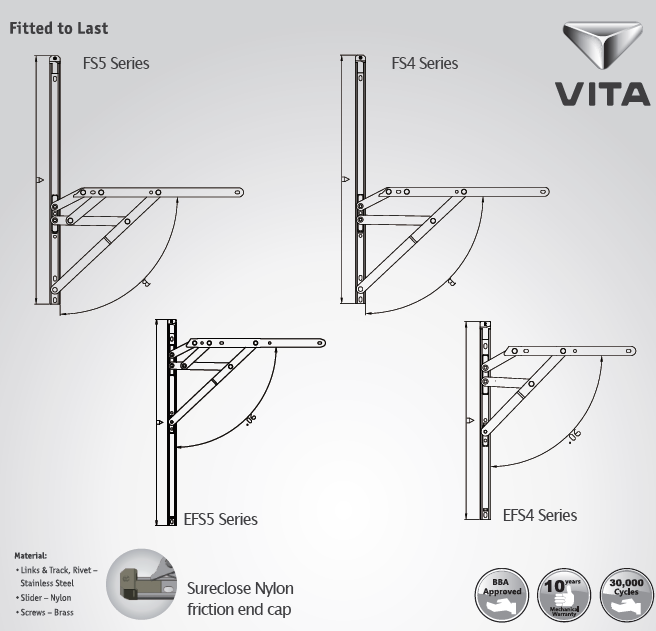

HANDED STAY |
The Vita handed friction stay range has been designed to ensure enhanced weather performance, smooth operation and durability for the life of the window. The Vita "Sureclose" Nylon friction end cap guarantees a positive engagement of the sash and the frame part, optimising gasket compression. KATANA |
RECOMMENDED MAXIMUM WINDOW WEIGHTS AND SIZES |
|||||||
| Product | Size | Application | Sash With | Sash Height | Sash Weight | Stack Height | Opening Angle |
| FS408 | 8'' | Top hung | 1200mm | 350mm | 12kg | 13mm & 17mm | 60 |
| FS410 | 10'' | Top hung | 1200mm | 400mm | 14kg | 13mm & 17mm | 60 |
| FS412 | 12'' | Top hung | 1200mm | 550mm | 16kg | 13mm & 17mm | 90 |
| FS416 | 16'' | Top hung | 1200mm | 800mm | 20kg | 13mm & 17mm | 65 |
| FS520 | 20'' | Top hung | 1200mm | 900mm | 24kg | 13mm & 17mm | 50 |
| FS524 | 24'' | Top hung | 1200mm | 1300mm | 50kg | 13mm & 17mm | 44 |
| FS512 | 12'' | Side hung | 600mm | 1200mm | 22kg | 13mm & 17mm | 55 |
| FS516 | 16'' | Side hung | 700mm | 1350mm | 24kg | 13mm & 17mm | 65 |
| EFS412 | 12'' | Side hung | 600mm | 1200mm | 22kg | 13mm & 17mm | 90 |
| EFS516 | 16'' | Side hung | 700mm | 1350mm | 24kg | 13mm & 17mm | 90 |
